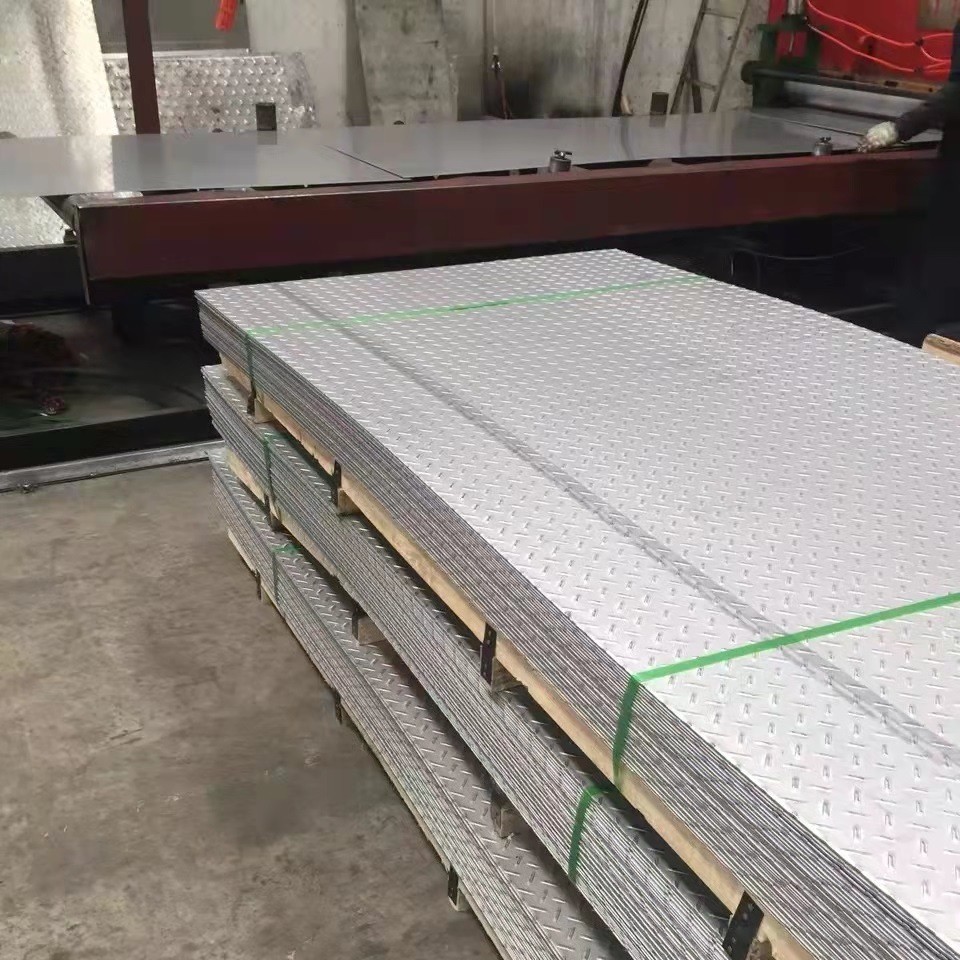

Grade 201 304 316L 321 Stainless Steel Checkered Plate & Sheet Thickness 1.0 - 8.0mm Pattern Plate
Stainless steel checker plate the aluminum also can be made to checker plate, the pattern includes lentil-shaped, diamond-shaped, round bean-shaped, dot-shaped, oblate mixed shape, etc. We can provide 201, 202, 304, 316, 430 stainless steel checker plates, etc. Please send me an inquiry and quote for you.
Stainless steel checkered plate also is called, stainless checkered plate, stainless checker plate steel, stainless steel diamond plate/diamond plate steel sheets, stainless steel tread plate, stainless steel chequer plate sheet, the aluminum also can be made to checker plate steel, the pattern includes lentil-shaped, diamond-shaped, round bean-shaped, dot-shaped, oblate mixed shape, etc.
Stainless steel tread plate is made of the hot-rolled stainless steel plate and has a more gripping surface than an ordinary stainless steel plate, so it is widely used on floors and low-rise walls.
The stainless steel chequer plate is made of cold-rolled plate and hot rolled stainless steel plate. Due to its high-quality modern and stylish appearance and excellent chemical properties, stainless steel diamond plates are often used in the food industry, construction, water heaters, bathtubs, and tableware.
Dimensions
| Thickness Inches | Size Inches | Wt. Per Sq. Ft. | Weight Per Plate |
| .125 | 48 x 96 | 6.15 | 197 |
| .125 | 48 x 120 | 6.15 | 246 |
| .1875 | 48 x 96 | 8.70 | 279 |
| .1875 | 48 x 120 | 8.70 | 348 |
| .1875 | 60 x 120 | 8.70 | 435 |
| .250 | 48 x 96 | 11.25 | 360 |
| .250 | 48 x 120 | 11.25 | 450 |
| .250 | 60 x 120 | 11.25 | 563 |
| .375 | 48 x 120 | 16.5 | 660 |
Stainless Checkered Plate Steel
As one of the stainless steel checker plate suppliers in China, we can provide different sizes and grades, and we export stainless steel diamond plates for 14 years at high quality and competitive prices. If you need any stainless steel chequer plates, please free to contact me for the steel checker plate sheet price, I will send you our competitive stainless steel checker plate sheet price for your reference, and we can send you free samples of the stainless steel chequer plate sheet and MTC, etc.
Specification of Stainless Steel Tread Plate
- The Grades of Stainless Steel Checker Plate Steel:201, 202, 304, 304L, 316L, 310S, 410, 410S, 430,316 stainless steel diamond plate, etc.
- The surface finish of stainless chequer plate:1 for hot rolled stainless steel chequer plate, 2B for cold rolled checker plate steel, No.4, BA, HL, MIRROR, etc.
- Type: Diamond pattern, Lentil pattern, 5 bars pattern, T pattern, etc.
- Stainless Chequer Plate Thickness:3mm – 3mm for Cold Roll, 3mm – 10mm checker plate steel/12.5mm for Hot Roll.Can be customized according to customer requirements.
- Width:10mm – 600mm for strip ; 600-2000mm for sheet.Can be customized according to customer requirements.
- Length:2000mm – 6000mm, Can be customized according to customer requirements.
-
Stainless steel embossed stainless chequer plate with thicknesses of 1mm to 5mm can be used for insulated box manufacture. | Thickness (mm) | 2.3 | 3.2 | 4.5 | 6.0 | 9.0 | 12.0 |
| Max width (mm) | 1219 | 1524 | 1524 | 1524 | 1524 | 1524 |
| Maximum length (mm) | 6096 | 6096 | 6096 | 6096 | 6096 | 6096
|
Feature of Stainless Steel Checker Plate
- High-temperature resistance.
- Corrosion resistance.
- Alkaline resistance.
- Anti-rust.
- Anti-skid.
- Durable and long life.
- Minimum maintenance.
Application of Stainless Chequer Plate
- Because of its surface rib bar, the non-slip effect can be used as the floor, factory escalator, working platform pedals, ship deck, car floor, and so on. The beautiful appearance of the stainless steel tread plate, non-slip, strengthens the performance, saving steel, and many other advantages, in transportation, construction, decoration, equipment around the floor, machinery, shipbuilding, and other fields have a wide range of applications. In general, with the use of squares on the mechanical properties of the board, mechanical performance is not high, so the quality of the main pattern is the pattern into flower rate, pattern height, and pattern height difference. Currently available on the market from the thickness of 1.0-6mm ranging from the width of the common1219 1250,1500 mm.
-
Stainless checker plate steel is used in the workshop, large equipment, or ship walkways and stair pedals, and the surface of the diamond-shaped or lenticular pattern of steel. The size of the plate is based on the basic thickness (excluding the thickness of the rib).
- Pattern board height not less than 0.2 times the thickness of the substrate; intact pattern, the pattern allows a height of not more than half of the thickness tolerance of the local slight burr.
Hole Pattern of Stainless Steel Diamond Plate
Stainless Steel Diamond Plate is Commonly used holes are round holes, square holes, long waist holes, triangle holes, diamond holes, etc., and other special-shaped holes such as louver holes, alligator mouth holes (tooth-shaped non-slip holes), bump holes, nail holes (fish scale holes), Cross-shaped hole, etc.
The production process for Stainless Steel Chequer Plate Sheet
Usually, there is 2 production process for stainless chequer plate, one is hot rolled with the NO.1 finish, and the other is a cold press with NO.1 or 2B finish. Hot rolled is more expensive than cold press.
