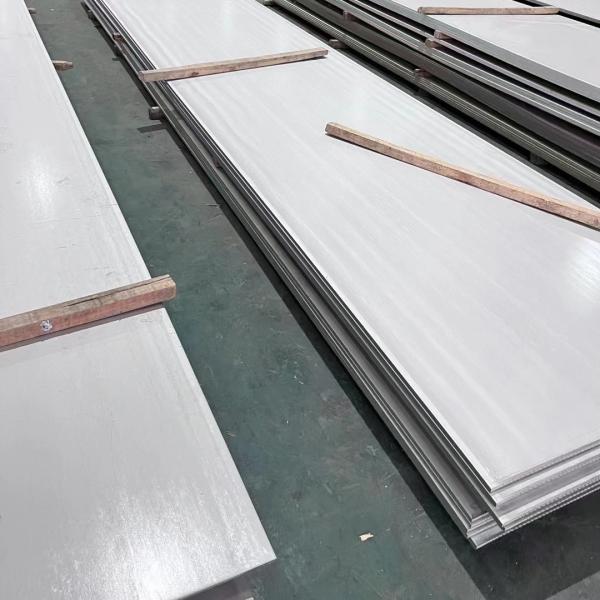

Alloy 304H Stainless Steel Plate AISI304H / UNS S30409 SS Plate Custom Cutting

Name: Alloy 304H Stainless Steel Plate AISI304H UNS S30409 SS Plate Custom Cutting
Brand: DELTA
Price: 2200 USD

China Alloy 304H Stainless Steel Plate AISI304H / UNS S30409 SS Plate Custom Cutting factory

Brand Name : DELTA

Model Number : 304H

Certification : ISO

Place of Origin : China

MOQ : 400 kgs

Price : 2200 -3220 USD/Ton

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10 Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : wooden pallets + waterproof paper

Products : stainless steel plates

Grade : 304H

Standard size : 1000*2000mm 1219*2438mm 1500*6000mm

Thickness : 0.6- 40.0mm

Brand : TISCO BAOSTEEL POSCO LISCO

Loading Port : Shanghai Port

MOQ : 200 kgs

Packing : wooden pallets + waterproof paper

Contact Now

Alloy 304H Stainless Steel Plate AISI304H / UNS S30409 SS Plate Custom Cutting

More Informations of our Products

Product	Stainless Steel Sheet/Plate
Standard	ASTM A240,GB/T3280-2007,JIS4304-2005,ASTM A167,EN10088-2-2005,etc
Material	310S,310,310H,309,309S,316,316L,316Ti,317,317L,321,321H,347,347H,304,304L,302,301, 201,202,403,405,409,409L,410,410S,420,430,631,904L,Duplex,etc
Surface	2B,2D,BA,NO.1,NO.4,NO.8,8K,mirror,checkered,embossed,hair line,sand blast,Brush
Thickness	Cold Rolled:0.3-6mm
Thickness	Hot Rolled: 3-20mm
Width	1000mm,1219mm,1500mm,1800mm,2000mm,2500mm,,etc
Length	2000mm,2440mm,3000mm,5800mm,6000mm,etc
Package	Covered with a layer of plastic film and cardboard,packed on the wooden pallets/ iron packing,bound with iron belt,loaded in the containers.
Price Terms	Ex-Work,FOB,CFR,CIF,FCA,etc
Payment Terms	TT,L/C at sight ,western Union,etc.

Alloy 304/304H (UNS S30400/ S30409) is a modification of the most widely utilized "18-8" chromium-nickel austenitic stainless steel. The carbon content is controlled in the range of 0.04-0.10% for increased strength at temperatures above 800°F (427°C). It is an economical and versatile corrosion resistant alloy suitable for a wide range of general purpose applications.

It is common practice for 304H to be dual certified as 304 and 304H. The high carbon chemistry of 304H enables 304 to meet the mechanical properties and grain size requirements of 304H.

Alloy 304/304H has general corrosion resistance similar to 304/304L. It resists atmospheric corrosion, as well as, moderately oxidizing and reducing environments. However, because of its high carbon content, Alloy 304/304H is subject to carbide precipitation in the heat affected zone of welds.

Alloy 304/304H is non-magnetic in the annealed condition, but can become slightly magnetic as a result of cold working or welding. It can be easily welded and processed by standard shop fabrication practices.

Chemical Analysis

Weight % (all values are maximum unless a range is otherwise indicated)

Element	304	304H
Chromium	18.0 min.-20.0 max.	18.0 min.-20.0 max.
Nickel	8.0 min.-10.5 max.	8.0 min.-10.5 max.
Carbon	0.08	0.04 min-0.10 max.
Manganese	2.00	2.00
Phosphorus	0.045	0.045
Sulfer	0.030	0.030
Silicon	0.75	0.75
Nitrogen	0.10	0.10
Iron	Balance	Balance

Our 304H Stainless Steel Products and Size Range

Type	Sizes	Schedules	ASTM Standards
Bar			A276, A479
Butt Weld Fittings	1/2″ thru 12″	Sch 10, 40, 80, 160 & XXH	A403
Forgings	1/2″ thru 8″		A182
Pipe Welded & Seamless	1/4″ thru 16″	Sch 10, 40, 80, 160 & XXH	A312
Tube, Welded			A249
Tube, Seamless			A213
Plate			A240
Flange & Pressure Fittings	All Descriptions
