1.4361 Stainless Steel Plates and Sheets Alloy 1815 / UNS S30600 Stainless Steel
Quick Informations
| Products Name | 1.4361 Stainless Steel Plate | Standard | EN 10088-2 |
| Thickness | 0.4 - 40.0mm | Surface | 2B NO.1 or processing other surface |
| Standard Size | 1219*2438mm 1500*6000mm | Brand | TISCO BAOSTEEL POSCO |
More Informations of our Products
| Item | Stainless Steel Plates / Stainless Steel Sheets |
| Main Grades | 201, 202, 301, 304, 304L, 310S, 309S, 316, 316L, 321, 409L, 410, 410S, 420, 430, 904L, etc. |
| Standard | ASTM GB JIS EN DIN BS |
| Thickness | 0.4mm-40mm |
| Stock Thickness | 0.4mm 0.5mm 0.6mm 0.8mm 1.0mm 1.2mm 1.5mm 2mm, 2.5mm, 3mm, 3.5mm, 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm,10mm,12 - 40mm |
| Width | 1000mm 1219mm 1500mm or cutting any size as request |
| Standard size | 1000*2000mm 1219*2438mm 1500*6000mm 2000*6000mm |
| Finish | 2B, BA, No. 1, No. 4, mirror, brush, hairline, chequered, embossed, etc. |
| Package | Standard export package |
EN 1.4361 stainless steel is an austenitic stainless steel formulated for primary forming into wrought products. Cited properties are appropriate for the solution annealed (AT) condition. 1.4361 is the EN numeric designation for this material. X1CrNiSi18-15-4 is the EN chemical designation.
The graph bars on the material properties cards below compare EN 1.4361 stainless steel to: wrought austenitic stainless steels (top), all iron alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.
Chemical Composition of 1.4361 Stainless Steel
Among wrought stainless steels, the composition of EN 1.4361 stainless steel is notable for containing a comparatively high amount of silicon (Si). Silicon content is typically governed by metallurgical processing concerns, but it can also be added for the purpose of improving oxidation resistance.
| Grade | C | Si | Mn | P | S | Cr | Ni | N | Fe |
| 1.4361 | 0.015 | 3.7-4.5 | 2.00 | 0.045 | 0.015 | 16.5-18.5 | 14.0-16.0 | 0.10 | Bal |
Specification of 1.4361 Stainless Steel
- DIN EN 10088-1 - Stainless steels - Part 1: List of stainless steels
- DIN EN 10088-2 - Stainless steels - Part 2: Technical delivery conditions for sheet/plate and strip of corrosion resisting steels for general purposes
- DIN EN 10088-3 - Stainless steels - Part 3: Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purposes
Stainless steels - Part 3: Technical delivery conditions for semi-finished products, bars, rods, wire, sections and bright products of corrosion resisting steels for general purpose.
Mechanical properties of grade 1.4361 DIN EN 10088-1
Proof strength
Rp0.2 (MPa) | Tensile strength
Rm (MPa) | Impact energy
KV (J) | Elongation at fracture
A (%) | Reduction in cross section on fracture
Z (%) | As-Heat-Treated Condition | Brinell hardness (HBW) |
| 618 (≥) | 832 (≥) | 14 | 31 | 31 | Solution and Aging, Annealing, Ausaging, Q+T,etc | 342 |
Product shapes we supply:
Product Tags:
|
|

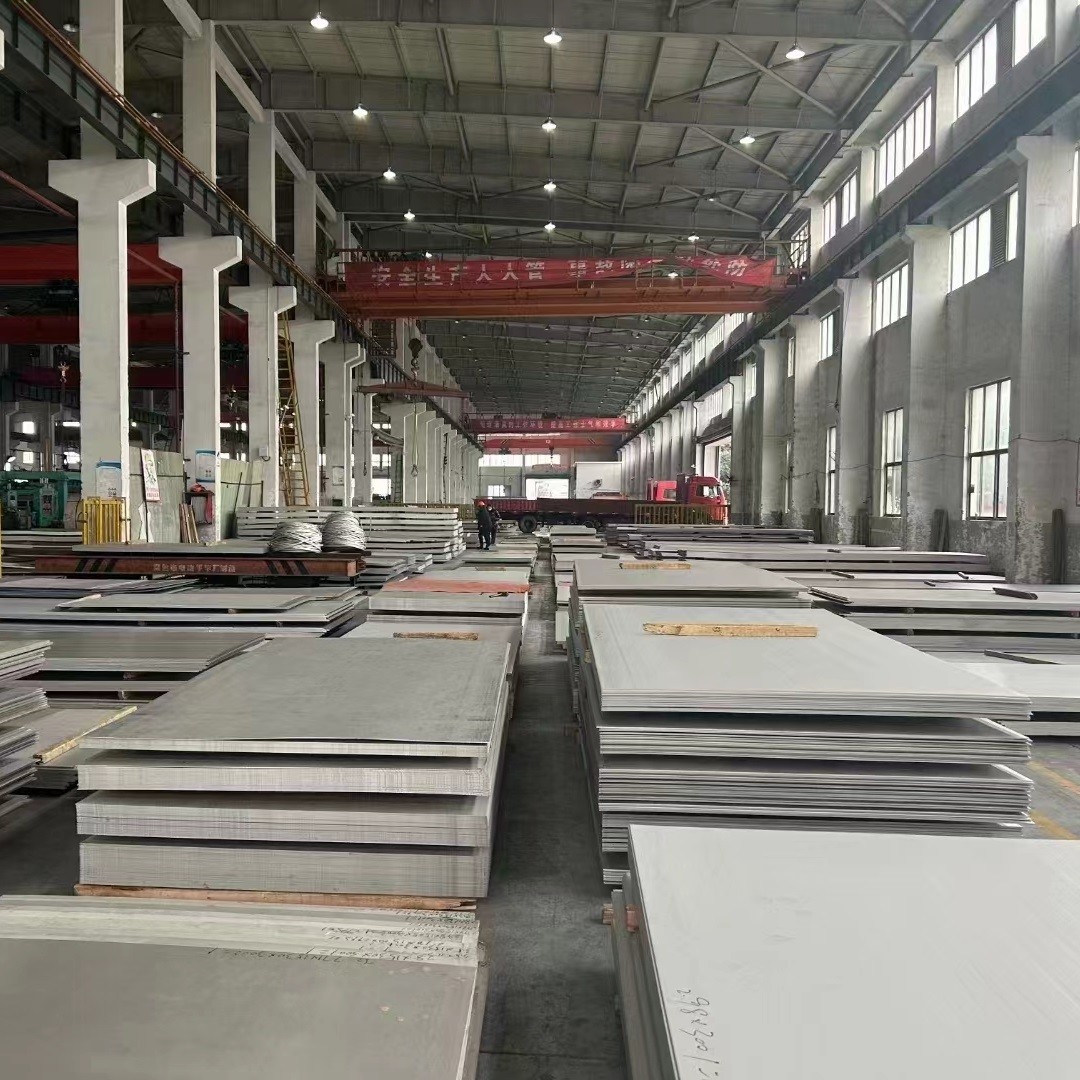

1.4361 Stainless Steel Plates and Sheets Alloy 1815 / UNS S30600 Stainless Steel Images
|
