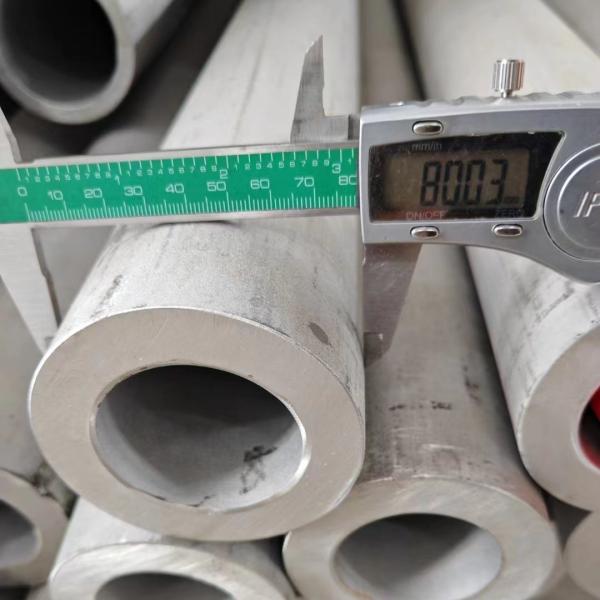

W. Nr. 2.4819 / Alloy C276 Nickel Base Alloy Seamless Pipe Tube with EN 10204-3.1 Certificate

Name: W Nr 24819 Alloy C276 Nickel Base Alloy Seamless Pipe Tube with EN 1020431 Certificate
Brand: DELTA
Price: 40 USD

China W. Nr. 2.4819 / Alloy C276 Nickel Base Alloy Seamless Pipe Tube with EN 10204-3.1 Certificate factory

Brand Name : DELTA

Model Number : Hastelloy C276 / UNS N10276 / 2.4819

Certification : ISO

Place of Origin : China

MOQ : 500 kgs

Price : 40-45 USD/Kg

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3 Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

Products : Nickel alloy bars

Grade : Hastelloy C276

Diameter : DN6-DN400

Length : 6000mm or custom cutting any length as request

Standard : ASTM EN

Service : Cutting

Loading Port : Shanghai Port

Surface : Black, bright

Contact Now

W. Nr. 2.4819 / Alloy C276 Nickel Base Alloy Seamless Pipe Tube with EN 10204-3.1 Certificate

Specification List of Alloy C276 Seamless Tube

Specifications	ASTM B 622 ASME SB 622 / ASTM B 619 ASME SB 619
Dimensions	ASTM, ASME and API
Size	15″NB TO 150″NB IN
Specialized in	Large Diameter Size
Schedule	SCH5, SCH10, SCH40, STD, SCH80, SCH160
Type	Seamless / ERW / Welded / Fabricated
Form	Round, Hydraulic Etc
Length	Single Random, Double Random & Cut Length.
End	Plain End, Beveled End, Treaded

Alloy C276 nickel pipe is made from a nickel-molybdenum-chromium alloy with addition of tungsten having excellent corrosion resistance in a wide range of severe environments. The high molybdenum content makes this alloy especially resistant to pitting and crevice corrosion. The low carbon content minimizes carbide precipitation during welding to maintain corrosion resistance in as-welded structures.

C276 Hastelloy Alloy Pipes Chemical Composition

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.01 max	15 – 17	1.0 max	0.08 max	4 – 7	0.04 max	0.03 max	2.5 max	14.5 – 16.5

Hastelloy Alloy C276 Pipe Mechanical Properties

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.89 g/cm3	1370 °C (2500 °F)	Psi – 52,000 , MPa – 355	Psi – 1,15,000 , MPa – 790	40 %

Equivalent Grades for C276 Hastelloy Pipe

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	–	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Applications of EN 2.4819 / Alloy C276 Pipe

Some typical applications include equipment components in chemical and petrochemical organic chloride processes and processes utilizing halide or acid catalysts. Other industry applications are pulp and paper (digesters and bleach areas), scrubbers and ducting for flue gas desulfurization, pharmaceutical, and food processing equipment.

Alloy C-276 sheet 0.044" thick in the heat-treated condition at 2050 °F, rapid quenched, has an average olsen cup depth of 0.48". C-276 can be successfully fabricated by many methods. The alloy tends to work harden but with the proper care, the alloy is readily hot and cold formed.

Digesters and bleach plants in the paper industry.
Components exposed to sour gas.
Equipment for flue-gas desulphurisation plants.
Evaporators, heat exchangers, filters and mixers used in sulphuric acid environments.
Sulphuric acid reactors.
Organic chloride process equipment.
Equipment for processes utilising halide or acid catalysts.

Our Products Grade We Can Supply

Inconel	Inconel 722, Inconel 725, Inconel X-750, Inconel 625, Inconel 686, Inconel 690, Inconel 702, Inconel 706, Inconel 713C, Inconel 600, Inconel 601, Inconel 602CA, Inconel 617, Inconel 718.
Incoloy	Incoloy 945, Incoloy A-286, Incoloy 901, Incoloy 903, Incoloy 907, Incoloy 909, Incoloy 925, Incoloy 926, Incoloy 330, Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 801, Incoloy 840, Incoloy 20, Incoloy 205, Incoloy 208
Hastelloy	Hastelloy C 276, Hastelloy G, Hastelloy W, Hastelloy X, Hastelloy G-30, Hastelloy G-35, Hastelloy G3, Hastelloy N, Hastelloy S, B-2, Hastelloy B-3, Hastelloy C2000, Hastelloy C22
Haynes	Haynes 75, Haynes 244, Haynes 25, Haynes 263, Haynes 282, Haynes 556, Haynes 188, Haynes 230, Haynes 233, Haynes 242
Monel	Monel 400, Monel K-500, Monel R405, Monel 401, Monel 404, Monel 405.
Nimonic	Nimonic 91, Nimonic C263, Nimonic PE11, Nimonic PE16, Nimonic PK33, Nimonic 80A, Nimonic 96, Nimonic 90, Nimonic 901, Nimonic 105, Nimonic 115
Other Nickel	Waspaloy, Multimet N155, Mumetal 80, Rene 41, Kovar, Maraging 250, Maraging 300, Maraging 350, MP159, MP35N, Alloy 46, Alloy 48, Alloy 52, Alloy 42, Alloy 45, Cobalt alloy 6b, Custom 455, Invar 36, Invar 42, Nickel 200, Nickel 201
