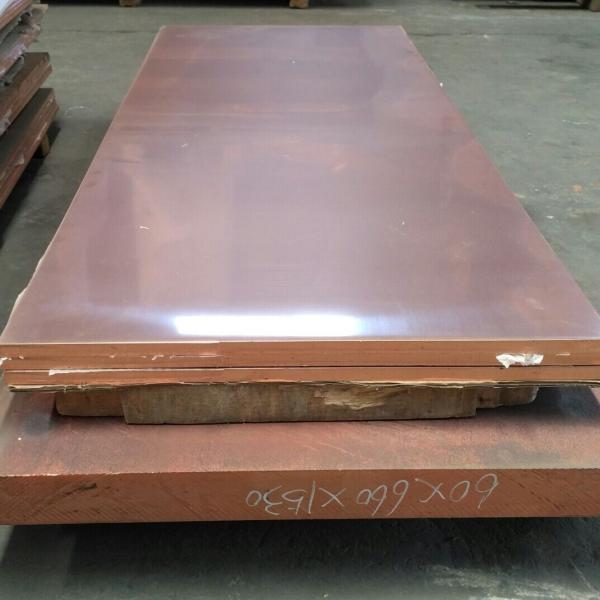

Copper Plate and Sheet C11000 / 110 Copper Plate CNC Cutting Width 500mm 600mm 1000mm

Name: Copper Plate and Sheet C11000 110 Copper Plate CNC Cutting Width 500mm 600mm 1000mm
Brand: DELTA
Price: 8 USD

China Copper Plate and Sheet C11000 / 110 Copper Plate CNC Cutting Width 500mm 600mm 1000mm factory

Brand Name : DELTA

Model Number : C11000

Certification : ISO

Place of Origin : China

MOQ : 200 kgs

Price : 8 - 9 USD/Kg

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 15 Tons per month

Delivery Time : 5 - 10 days

Packaging Details : wooden pallets

Products : Copper flta bar

Grade : C11000 / T2

Standard : ASTM GB EN DIN JIS

Thickness : 0.5 - 60.0mm

Width : within 1000mm

Length : 6m or custom as request

Certificate : EN 10204-3.1

Other products : Pipe , round bar, strips

Contact Now

Copper Plate and Sheet C11000 / 110 Copper Plate CNC Cutting Width 500mm 600mm 1000mm

Product name	Copper Plate & Sheet
Copper and copper alloy grade	C11000,C10100,C12200 H59, H60, H62, H65, H68, H70, H80, H85, H90, H96, C2100, C2200,C2300, C2400, C2600, C2680, C2720, C2800, C3560, C3601, C3713, C3771, C3561 , CuZn30, CuZn32, CuZn35, CuZn37, CuZn40 ,TU1, T2, TP2, H96, H90, H85, H80, H70, H65, H63, H62, H59, HPb63-3, HPb66-0.5, HPb62-2, HPb62-3, HPb59-3, HSn70-1, HSn62-1,QSn8-0.3, QSn4-4-4, QAl9-4, QSB-1 etc.
Width	Within 1500mm Custom Cutting any width as request
Thickness	0.5 - 200.0mm
Length	1m 2m 3m 6m or custom cutting any length as request
Standard	ASTM EN DIN JIS GB
Other products	Plate, Sheet, Coil , Pipe, Round Bar, Square Bar, Flat Bar, Hexagonal Bar.etc

Our C11000 Copper Plate & Sheet Thickness

0.3mm	0.4mm	0.5mm	0.6mm	0.7mm	0.8mm
0.9mm	1.0mm	1.2mm	1.5mm	2.0mm	2.5mm
3.0mm	4.0mm	5.0mm	6.0mm	8.0mm	10.0mm
12.0mm	14.0mm	16.0mm	20.0mm	22.0mm	24.0mm
25.0mm	28.0mm	30.0mm	35.0mm	40.0mm	45.0mm
50.0mm	55.0mm	60.0mm	65.0mm	70.0mm	75.0mm
80mm	85.0mm	90.0mm	95.0mm	100.0mm	within200mm

The most common grade specification for ETP copper sheets is C11000, which is often referred to as Oxygen-Free High Conductivity (OFHC) copper. The C11000 grade is recognized for its exceptional electrical conductivity and is widely used in the production of electrical conductors, bus bars, connectors, and various electronic components.

Here are the general characteristics of ETP (C11000) copper:

Chemical Composition (Typical):

Copper (Cu): 99.90% minimum

Physical Properties:

Density: 0.323 lb/in³ (8.94 g/cm³)
Melting Point: Approximately 1,981°F (1,083°C)
Thermal Conductivity: 231 Btu·ft/(hr·ft²·°F) at 68°F (401 W/m·K at 20°C)
Electrical Conductivity: Approximately 100% IACS (International Annealed Copper Standard) at 68°F (20°C)

Mechanical Properties:

Tensile Strength (annealed): 32,000 psi (220 MPa) minimum
Yield Strength (annealed): 5,000 psi (35 MPa) minimum
Elongation (in 2 inches, annealed): 40% minimum

Additional Information:

Grain Size: ETP copper typically has a small, uniform grain size, contributing to its excellent electrical properties.
Corrosion Resistance: ETP copper exhibits good corrosion resistance in various environments.

Sizes Available

SHEETS (COLD ROLLED) . . . up to 1/4" thick max

PLATES (HOT ROLLED) . . . . cut to size, up to 6" thick

C11000 Copper Alloy Specifications

End Product	Specification
Plate	AMS 4500, ASTM B152, SAE J461, J463
Sheet	AMS 4500, ASTM B152, B694, SAE J463, J461
Sheet, Building Construction	ASTM B370
Sheet, Clad	ASTM B506
Sheet, Lead Coated	ASTM B101
Sheet, Printed Circuits	ASTM B451
Strip	AMS 4500, ASTM B694, B152, SAE J463, J461
Strip, Building Construction	ASTM B370
Strip, Clad	ASTM B506
Strip, Printed Circuits	ASTM B451
