Boiler steel plate asme sa516 gr70 equivalent to BS EN P355GH

Name: Boiler steel plate asme sa516 gr70 equivalent to BS EN P355GH
Brand: BAOSTEEL BENSTEEL HBIS XINGCHENG
Price: 540 USD

China Boiler steel plate asme sa516 gr70 equivalent to BS EN P355GH factory

Brand Name : BAOSTEEL BENSTEEL HBIS XINGCHENG

Model Number : Q345R / P355GH

Certification : ISO 9001

Place of Origin : China

MOQ : 10 kgs

Price : 540 - 890 USD/Ton

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20Ton per week

Delivery Time : 5 - 12 days based on the quantity

Packaging Details : standard packing for export

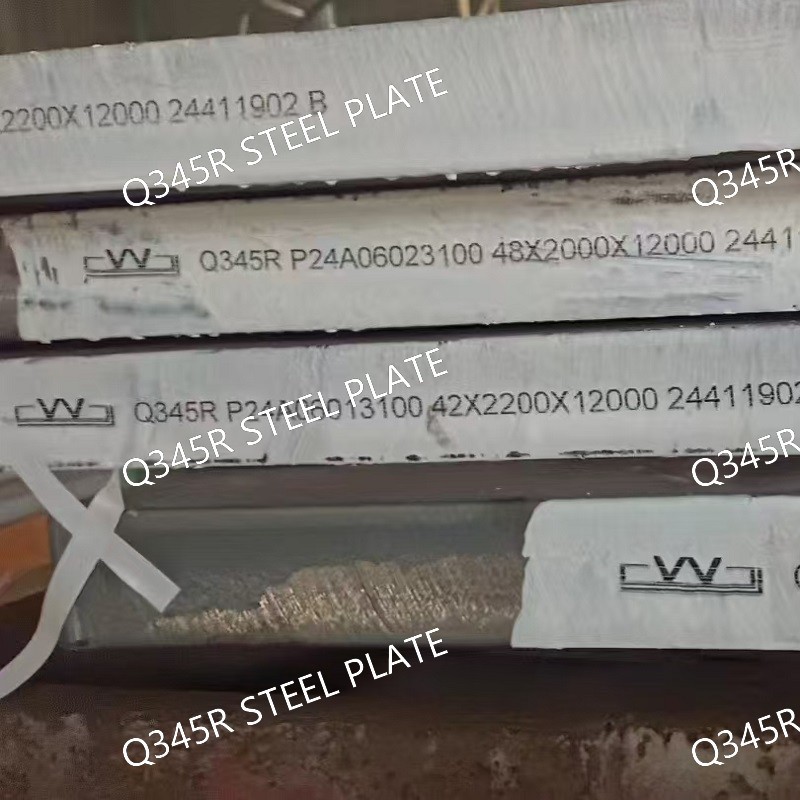

Products : Q345R Steel Plate

Thickness : 3.0 - 200.0mm

Width : 1000-2200mm

Length : 2000-12000mm

Standard : ASTM EN GB

Other Material : Carbon Steel, Alloy Steel, Stainless Steel

Brand : BAOSTEEL XINYU XINGCHENG HBIS

Service : Cutting

Contact Now

Boiler steel plate asme sa516 gr70 equivalent to BS EN P355GH

Product Name	Q345R / P355GH Steel Plate
Thickness	3mm~300mm,2mm-100mm is common thickness,also can customize
Width	1000~3000mm,common width is 1250mm,1500mm,2000mm,2200mm
Length	1000~12000mm,can as your request cut
Surface	Clean,finished, blasting and painting or as your request
Delivery	Hot Rolled, Controlled Rolling,Normalizing,Annealing, Tempering,Quanching, Q+T
Packing	Steel Strapping,fixing in the Container,can customize
Thickness tolerance	±0.3mm
Application	It is mainly used to make structural parts such as car girder, beam, transmission shaft and car chassis parts, which can reduce the weight of the parts.

SA516 GR70 steel plate comply to ASME SA516/SA516M specification which pressure vessel plates,carbon steel for moderate and low temperature service.P355GH steel plate comply to BS EN 10028-2 specification which flat products made of steels for elevated temperature pressure vessel purposes.So SA516 GR70 steel plates and P355GH steel plates are both non-alloy pressure vessel steel plates.

Comparasion mechincal property and chemical composition from the below table,EN 10028-2 P355GH steel plate can be totally equivalent to ASME SA516 GR70.For heat treatment,P355GH steel plate must be done Normalized for any thickness,and ASME SA516 GR70 steel plate only require to be done normalized for thickness over 1.50 inch (40mm).

Ultrasonic examination for SA516 GR70 steel plate and P355GH steel plate shall be done comply to ASME SA435/SA435M,SA577/SA577M OR SA578/SA578M.

SA516 GR70 vs P355GH		Chemical composition: Heat Analysis Max%
Standard	Grade	C	Mn	P	S	Si	N	Alt min.	Cr	Cu
ASME SA516/SA516M	SA516 GR70	0.27	0.85-1.20	0.035	0.035	0.15-0.40	-	-	-	-
EN 10028-2	P355GH	0.10-0.22	1.10-1.70	0.025	0.010	0.60	0.012	0.02	0.30	0.30
Mechanical Properties:		Thickness		Yield strength		Tensile strength
Mechanical Properties:		Thickness		Mpa Min.		Mpa
ASME SA516/SA516M	SA516 GR70			260		485-620
EN 10028-2	P355GH	T≤16		355		510-650

Boiler steel plate asme sa516 gr70 equivalent to BS EN P355GH
