ASTM A790 S32550 Duplex Stainless Steel Pipe Tube Pickling and Bright Finishing

ASTM A790 S32550 Duplex Stainless Steel Pipe Tube Pickling and Bright Finishing

Products Specification

Chemical Composition

• Chromium (Cr): 24.0–27.0%
• Nickel (Ni): 4.5–6.5%
• Molybdenum (Mo): 2.9–3.9%
• Copper (Cu): 1.5–2.5%
• Nitrogen (N): 0.10–0.25%
• Carbon (C): ≤0.04%
• Other: Mn ≤1.5%, Si ≤1.0%, P ≤0.04%, S ≤0.03%

Mechanical Properties

• Tensile Strength: ≥750 MPa (110 ksi)
• Yield Strength (0.2% offset): ≥500 MPa (72.5 ksi)
• Elongation: ≥15%
• Hardness: 250–330 HB
• Impact Resistance: ≥60 J at -46°C

Physical Properties

• Density: 7.85 g/cm³
• Thermal Conductivity: 15.1–23.3 W/m·K (varies with temperature)
• Thermal Expansion Coefficient: 12.3×10⁻⁶/K (100–500°C)
• Resistivity: 850 nΩ·m
• Melting Point: 1390–1440°C

Performance

1. Corrosion Resistance
   • Pitting/Crevice Corrosion: Critical pitting temperature (CPT) ≥55°C (ASTM G48) .
   • Stress Corrosion Cracking (SCC): Exceptional resistance in chloride-rich environments, outperforming 316L by 5–10 times .
   • Acid Resistance: Resistant to sulfuric, phosphoric, and nitric acids, with low corrosion rates (e.g., 0.15 mm/year in 10% FeCl₃ + 3% HCl at 40°C) .
2. Mechanical Strength
   • High tensile strength (≈3× that of 316L) enables lighter structural designs without compromising safety .
   • Retains ductility and toughness even at sub-zero temperatures (-50°C) .
3. Weldability
   • Compatible with GTAW, SMAW, and SAW processes using ER2594 filler metal. Post-weld heat treatment (1020–1100°C water quench) optimizes phase balance .
4. Surface Finish
   • Pickling & Bright Finishing: Removes mill scale and oxides, enhancing corrosion resistance and aesthetic appeal. Bright finishes (e.g., 2B, BA) are ideal for hygienic applications .

Specifications

• Dimensions:
  • OD: 6–762 mm (0.25–30 inches)
  • Wall Thickness: 0.5–35 mm (0.02–1.38 inches)
  • Length: Customizable (typically 3–12 meters)
• Manufacturing Methods:
  • Seamless: Produced via hot extrusion or cold drawing.
  • Welded: ERW or seamless-welded with 100% NDT (e.g., ultrasonic testing per ASTM E213) .
• Standards Compliance:
  • ASTM A790/A790M, ASME SA-790, EN 10216-5, and NACE MR0175 .

Applications

1. Marine & Offshore:
   • Seawater desalination systems, subsea pipelines, and offshore platform components.
   • Replaces titanium in RO membrane housings, reducing costs by 30% .
2. Oil & Gas:
   • Downhole tubing, wellheads, and H₂S-resistant equipment (up to 5000 ppm H₂S) .
3. Chemical Processing:
   • Reactors, heat exchangers, and pipelines handling aggressive chemicals (e.g., 60% H₃PO₄) .
4. Mining & Pulp/Paper:
   • Slurry transport pipes, digesters, and bleach plants due to high abrasion resistance .
5. Power Generation:
   • Flue gas desulfurization (FGD) systems and condenser tubes in coal-fired plants .

Export Packaging

• Primary Packaging:
  • Wooden Crates/Pallets: Treated per ISPM-15 standards (heat-treated or fumigated) with IPPC markings .
  • Plastic Sheeting: Encapsulates pipes to prevent moisture and mechanical damage.
  • Steel Strapping: Secures bundles for stability during transit.
• Secondary Protection:
  • Anti-Corrosive Coatings: Optional wax or oil-based coatings for long-term storage.
  • Marking: Product specifications (grade, size, batch), ISO shipping labels, and handling instructions.
• Documentation:
  • Certificate of Conformance (CoC) with chemical/mechanical test results.
  • Material Test Reports (MTRs) compliant with EN 10204 3.1B.

Standards & Compliance

• ASTM A790/A790M: Primary specification for seamless/welded duplex stainless steel pipes .
• ASME SA-790: For pressure-containing applications in boilers and pipelines.
• EN 1.4507: European equivalent standard for S32550 .
• NACE MR0175: Compliant for sour gas environments.

ASTM A790 duplex stainless steel pipe

S32550 stainless steel tube

pickled bright stainless steel pipe

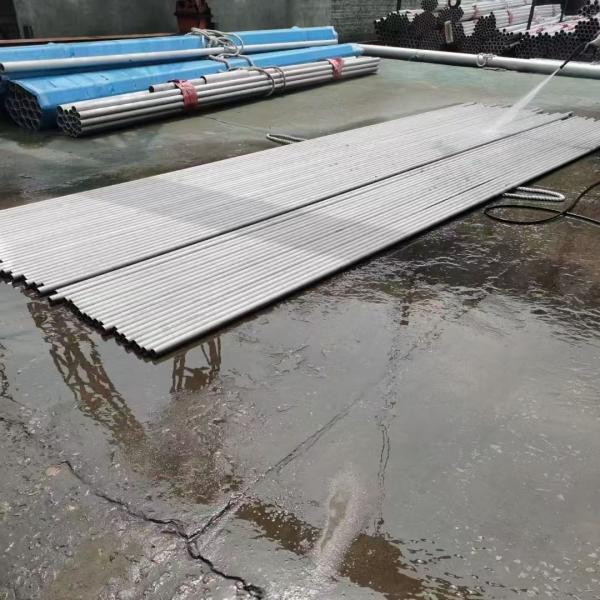

ASTM A790 S32550 Duplex Stainless Steel Pipe Tube Pickling and Bright Finishing Images
